Attaching Terminal Recordings to Log Entries

Document terminal activities with Asciinema recordings

Overview

Asciinema .cast files are text-based recordings of terminal sessions that capture every command, keystroke, and output from your terminal. By attaching Asciinema recordings to operation log entries, you create an immutable, reproducible record of your operational activities.

Ghostwriter supports both plain .cast files and Gzip-compressed .cast.gz files. Compressed recordings are recommended for long sessions or high-output operations to save storage space and bandwidth.

Unlike manual notes or screenshots, terminal recordings provide full context:

• Complete command history showing exactly what was run
• Full output of all commands executed
• Timing information showing when each command was issued
• Reproducible playback allowing others to see the exact sequence of events

When to Record

Record and attach terminal activity when:

• Running multi-step reconnaissance commands
• Key exploitation or post-exploitation activities
• System configuration changes
• Capturing proof-of-concept demonstrations
• Documenting complex technical workflows
• Creating evidence for forensic analysis

Prerequisites

Asciinema files (.cast format) are plain-text JSON files that capture terminal sessions. Ghostwriter accepts both plain .cast files and Gzip-compressed .cast.gz files. You can create them using:

• Asciinema CLI: asciinema rec filename.cast (creates while recording)
• Existing terminal session tools: tmux/screen logs converted to .cast format
• Manual .cast file creation: If you have terminal output in text format
• Compressed recordings: Use gzip filename.cast to create filename.cast.gz for large recordings

Recording a Terminal Session with Asciinema

Installation

If you don’t have Asciinema installed, follow the instructions in Asciinema’s documentation.

Mac

brew install asciinema

Recording a Session

1. Start the Session

   Start the recorder in your terminal:

   Start Recording

   asciinema rec output-filename.cast

2. Execute Your Commands

   Execute your commands and activities as normal

   • Everything typed and all output is captured
   • The recording starts immediately and captures keystrokes in real-time
3. End the Session

   End the recording by pressing Ctrl+D or typing exit

   • Asciinema will display upload options (decline if you want to keep it local)
   • The .cast file is saved to your specified filename
4. Test Playback

   Test playback to verify the recording:

   Playback Recording

   asciinema play output-filename.cast


The .cast file format is a JSON-based plain-text file, approximately 10KB per minute of recording depending on output volume. For long sessions or high-output operations, compress the file using gzip filename.cast to create a much smaller .cast.gz file that Ghostwriter can use directly.

Uploading Recordings via the Web Interface

Once you have a .cast or .cast.gz file, you can attach it to a log entry:

1. Open the Log Entry

   Open the log entry details by clicking the entry on left-side table view. The details will appear in the right-hand pane.

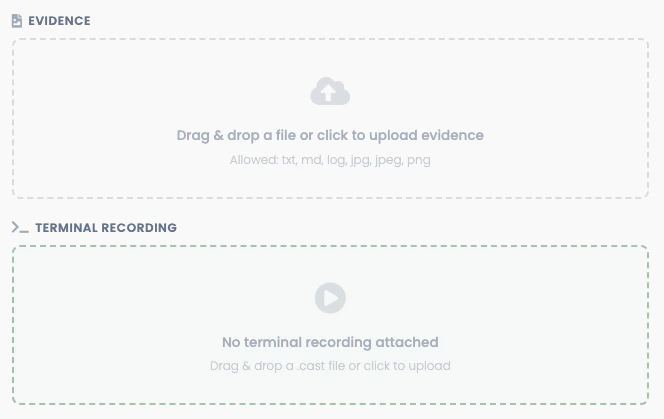

2. Scroll to the Dropzone

   Scroll to the Terminal Recording section

   If no recording has been attached yet, you will see the dropzone

3. Upload Your Cast File

   Drag and drop your .cast or .cast.gz file into the dropzone or click it to open the file browser

The system will:

• Validate the file extension is .cast or .cast.gz
• For compressed files, automatically serve them with proper headers for browser decompression
• Confirm the upload with a success message
• Add the “recording” tag to the log entry
• Make the recording available for playback

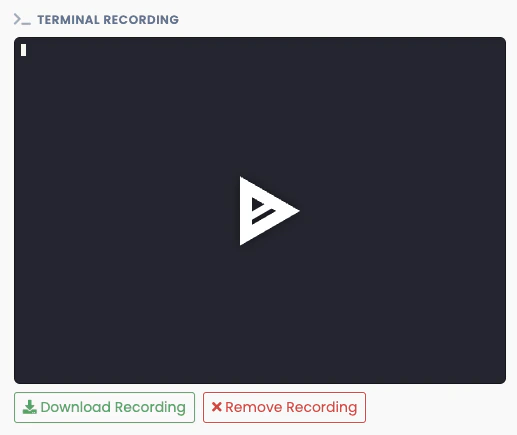

Viewing and Playing Recordings

Once a recording is attached, you can view it in the log entry details:

Click the play button to watch the terminal session playback.

Deleting or Replacing a Recording

If a log entry already has a recording and you want to replace it:

1. Open the Log Entry

   Open the log entry details by clicking the entry on left-side table view. The details will appear in the right-hand pane.

2. Remove the Recording

   Click the Remove Recording button to delete the recording.

   This action cannot be undone! Consider downloading a copy before removing the file.

3. Upload a New Recording

   If you want to replace the recording, select a new .cast or .cast.gz file.

Downloading a Recording

To download a recording for archival or external analysis:

1. Open the Log Entry

   Open the log entry details by clicking the entry on left-side table view. The details will appear in the right-hand pane.

2. Download the Recording

   Click the Download Recording button below the recording.

   Some browsers may not prompt when downloading the Asciinema cast files. If it looks like nothing happened, check your downloads location for the file.

3. Playback the Recording

   Play locally using asciinema play filename.cast

Uploading Recordings via GraphQL API

If you’re automating log entry creation, you can upload recordings programmatically:

GraphQL Mutation: uploadOplogRecording

Upload a Recording

mutation UploadRecording {
  uploadOplogRecording(input: {
    oplogEntryId: 626
    file_base64: "W1sxLjAsIEZhbHNlXSwgMC4xMjM0LCAidGV4dCIsICIkIl0=..."
    filename: "session.cast"
  }) {
    id
  }
}

Parameters:

• oplogEntryId (required): The ID of the log entry to attach the recording to
• file_base64 (required): The .cast or .cast.gz file encoded as base64
• filename (required): The filename of the recording (must end with .cast or .cast.gz)

Response:

Upload Response

{
  "id": 456,
}

Authorization:

• Requires authentication
• User must have edit permissions for the operation log entry’s project

Retrieving Recording Metadata and Content

To download a recording or retrieve its details:

Download a Recording

query {
  downloadOplogRecording(input: {
    oplogEntryId: 626
  }) {
    downloadUrl
    fileBase64
    filename
  }
}

Response:

Download Response

{
  "downloadUrl": "http://ghostwriter.local/oplog/recording/16/download",
  "fileBase64": "W1sxLjAsIEZhbHNlXSwgMC4xMjM0LCAidGV4dCIsICIkIl0=...",
  "filename": "session.cast"
}

The fileBase64 field is only populated if you explicitly request it in the query. Use downloadUrl for serving the file directly or to build download links.

Asciinema Technical Details

You can learn more about Asciinema here.

.cast File Format

The Asciinema .cast format is a new-line delimited JSON-based and follows this structure:

Example Asciinema File Header

{"version":3,"term":{"cols":88,"rows":25,"type":"xterm-256color","version":"iTerm2 3.6.9","theme":{"fg":"#f8f8f3","bg":
"#212121","palette":"#21222b:#ec615c:#85f789:#f7cd7a:#8aa9f9:#bf94e5:#a1e7fb:#f8f8f3:#545454:#ee7773:#94fc9f:#f7cd7a:
#d0aefa:#f197dc:#b9fdfe:#f8f8f3"}},"timestamp":1773250286,"env":{"SHELL":"/bin/zsh"}}
[4.159, "o", "\u001b[1m\u001b[7m%\u001b[27m\u001b[1m\u001b[0m                                                                                       \r \r"]

The file format is detailed in the Asciinema documentation.

File Size Considerations

• Average recording: 10KB per minute for plain .cast files
• High-output operations: Can reach 100+ KB per minute
• Compressed .cast.gz files: Typically 10-20% of original size due to plaintext repetition
• Asciinema does not support “lazy-loading” or streaming content, so the entire file must be loaded in browser memory for playback.

For sessions longer than 30 minutes or operations with high terminal output (e.g., verbose enumeration tools, compilation logs), compress your .cast files using gzip filename.cast before uploading. This significantly reduces storage space and download time while maintaining full functionality in Ghostwriter’s player.

Best Practices

• Start recording before action begins: Start Asciinema before running commands, not after
• Keep recordings focused: Record a single activity or workflow, not entire operations
• Use meaningful filenames: Name recordings by activity (e.g., seatbelt-execution.cast)
• Verify quality: Test playback before attaching to ensure timing and output are correct
• Clean sensitive data: If recording captures credentials or sensitive data, create a separate sanitized version
• Supplement with notes: Use the log entry fields to describe the objective and key findings
• Compress cast files: Compress recordings that are longer than 30 minutes or have a high volume of commands and/or output

Troubleshooting

“Can’t play the recording in Ghostwriter?”

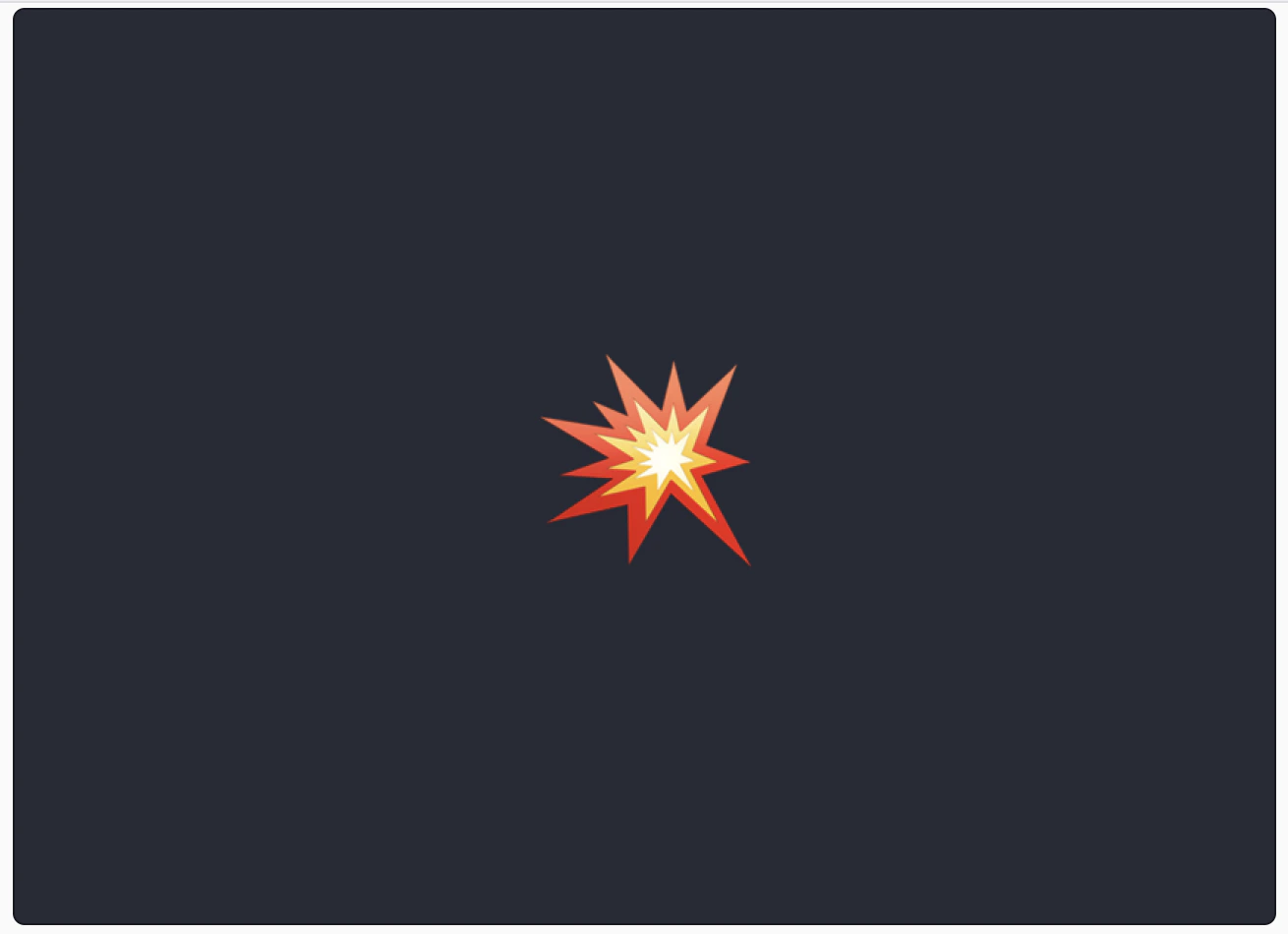

• Files Asciinema cannot understand will appear as a broken video player
• Verify the file is a valid .cast format from Asciinema
• Check that the file extension is exactly .cast (lowercase)
• Try playing it locally first: asciinema play filename.cast

“Recording seems to be missing commands?”

• Some command-line tools clear the screen; scroll through the playback timeline to find them
• Check that the entire session was captured by playing the file locally first

“Can I edit a .cast file after recording?”

• Yes—.cast files are JSON and can be edited with any text editor
• Common edits: removing sensitive commands, fixing timing issues, or adding annotations
